规格参数 | |
产品 | |

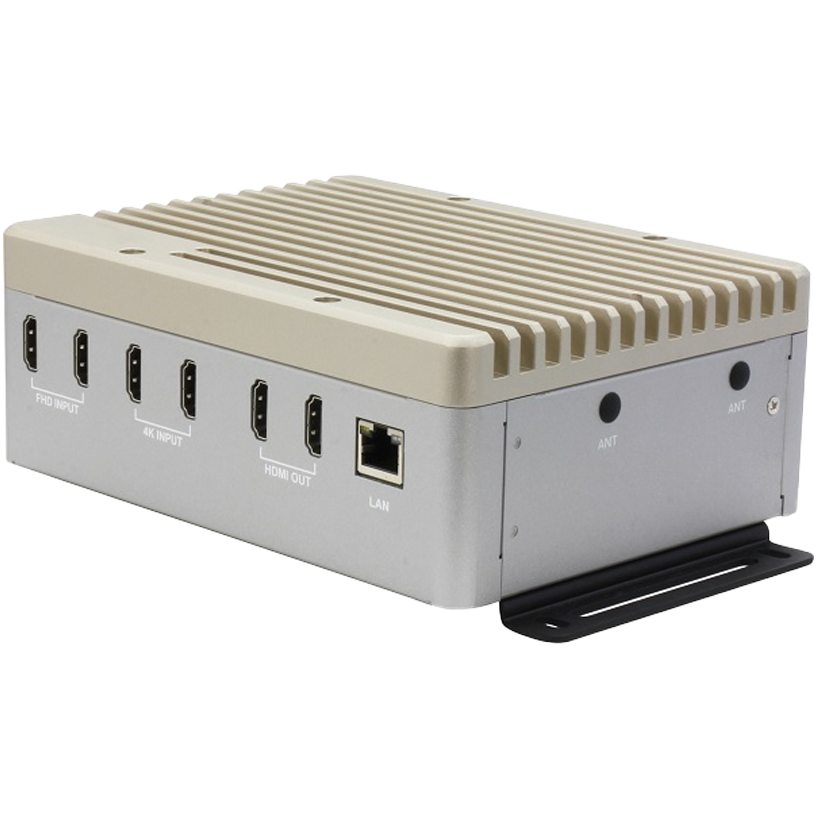

| 产品名 | AES-8256AI |
| 产品类型 | AI边缘计算 |
系统配置 | |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU |
| 芯片组 | NVIDIA Jetson Xavier NX |
| 内存 | 8GB LPDDR4x |
扩展接口 | |
| 开关 | Power ON/OFF switch x 1 Recovery button x 1 Power LED x 1 |
| CAN总线 | 1 |
存储 | |
| 存储1 | 16GB eMMC x 1 |
| 存储2 | MicroSD插槽x 1 |
| HDD/SSD | 2.5英寸SATA x 1个 |
扩展 | |
| 扩展槽1 | M.2 B-Key 3042/3052 x 1 (PCIE[x2] + USB 3.0) M.2 E-key x 1(PCIE[x1] + USB 2.0) |
| Antenna Hole（天线孔） | SMA Antenna hole x 2 |
| PCIE | M.2 M-Key 2280 x 1 (PCIE[x4]) |
显示 | |
| HDMI | HDMI x 2 for Video Display 2.0 HDMI x 4 for Video Input 1.4 (Limitation have stated in User manual) |
电源 | |
| 供电类型 | DC-in |
| 输入电压 | 12-24V with 2-pin terminal block |
物理参数 | |
| 外观尺寸（mm） | 7.09" x 5.35" x 2.64" (180 mm x 136 mm x 67 mm ) |
| 重量(Kg) | 2.87磅(1.3千克) |
| 固定方式 | Wall mount kit |
使用环境 | |
| 工作温度 | -5°F ~ 140°F (-15°C ~ 60°C with 0.5 m/s airflow) |
| 存储温度 | -40°F ~ 176°F (-40°C ~ 80°C) |
| 存储湿度 | 5 ~ 95% @ 40°C, non-condensing |
| 操作系统支持 | Linux (NVIDIA Jetpack 4.6.2 or above) |
| 安全认证 | CE / FCC class A |
| ANTI-Vibrator（抗震） | 3.5 Grms/ 5 ~ 500Hz/ operation – eMMC |
| ANTI-Shock（抗冲击） | 50G, IEC 60068-2-27, half sine, 11 ms duration – eMMC |
以太网 | |
| 网卡 | RJ-45 x 1 for GbE LAN |
音频 | |
| 音频接口 | Mic-in x 1, Line-Out x 1 |
I/O接口 | |
| 串行端口 | DB9 for RS-232/422/485 (By switch) and CANbus x1 |
| USB接口 | USB Type A x 3 for USB 3.2 Gen 1 Micro USB for OS Flash x 1 |
